Tiamshop
A comprehensive e-commerce platform featuring a robust 3-tier architecture with an ASP.NET Core backend and React frontend. Engineered specifically for the Nigerien market, supporting local payment methods and complex delivery logistics.
Timeline
2022-10 — 2023-05
Technologies
Overview
E-commerce built for Niger
Tiamshop is a full-stack e-commerce platform developed as my Bachelor's capstone project. Designed to address the growing demand for trusted online shopping in Niger, it features a highly scalable architecture and was awarded Best Capstone Project (18.5/20).
3-Tier
Architecture
Clean separation of concerns
18.5/20
Award
Best capstone project
3
User Roles
Client, Admin, Deliverer
4
Payment Methods
Cash, Airtel, Orange, Check

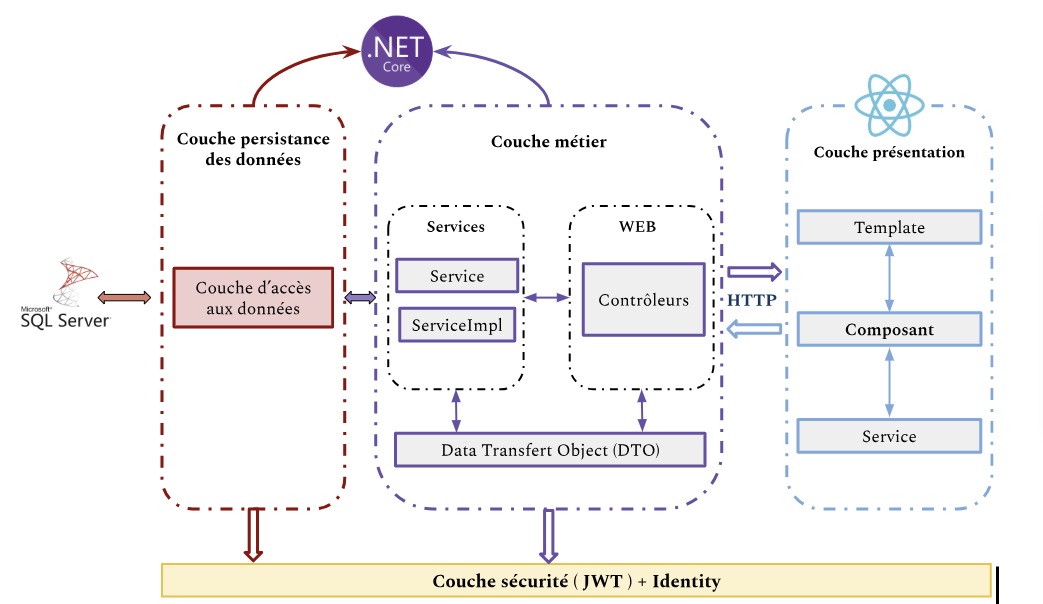

Architecture
Robust 3-Tier Design
The system is built on a strict 3-tier architecture to ensure maintainability and scalability. The Presentation layer communicates via HTTP with the Business layer, which handles Data Persistence through Entity Framework Core and SQL Server.
- ✓Presentation Layer: React, Redux Toolkit, and Material-UI for a highly responsive user experience.
- ✓Business Layer: ASP.NET Core Web API handling complex routing, business logic, and JWT-based authentication via Microsoft Identity.
- ✓Persistence Layer: SQL Server integration utilizing both Entity Framework Core for complex relational queries and Dapper for high-performance read operations.

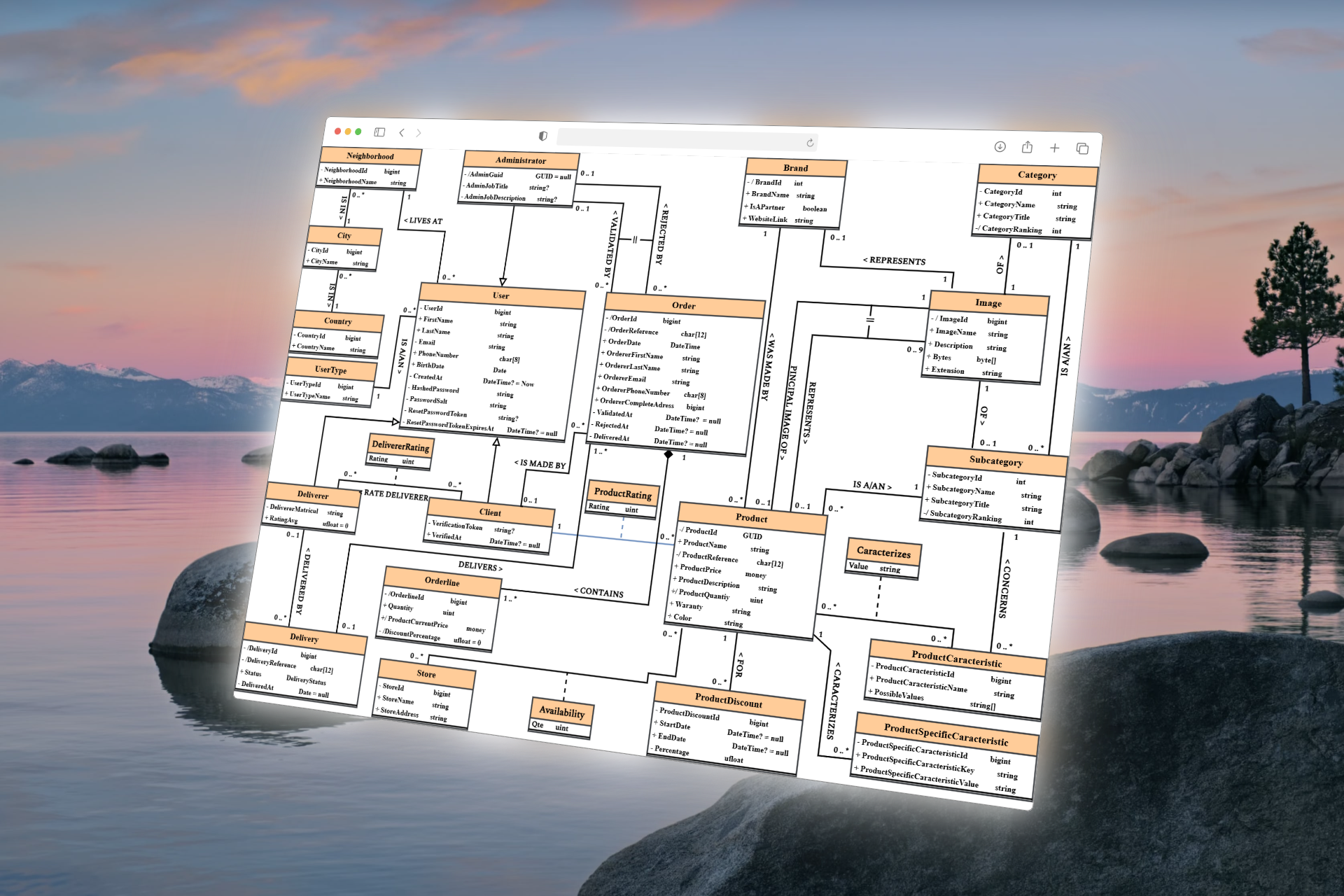

Database Design
Complex Relational Modeling
The database was meticulously modeled to handle the realities of a multi-vendor, multi-role e-commerce environment. It features advanced table inheritance strategies for user roles and deeply normalized product characteristic mappings.
Data Integrity & Inheritance
A core 'User' entity is extended into specific roles (Administrator, Client, Deliverer) to enforce strict access control. Products are heavily normalized to support dynamic categories, sub-categories, specific characteristics, and hierarchical discounting.
Features
Comprehensive User Journeys
- •Client Experience — Advanced multi-criteria search (by category, brand, price range, availability), persistent cart management, multi-step checkout with local payment options (Airtel Money, Orange Money), and order tracking.
- •Administrator Dashboard — Secure interface to manage product catalogs with multiple image uploads, dynamically assign deliveries to specific couriers based on neighborhoods, and track overall platform health.
- •Deliverer Portal — Dedicated views for couriers to list assigned orders and update delivery statuses in real-time.
